額定電壓：600V
工作溫度：-60~+

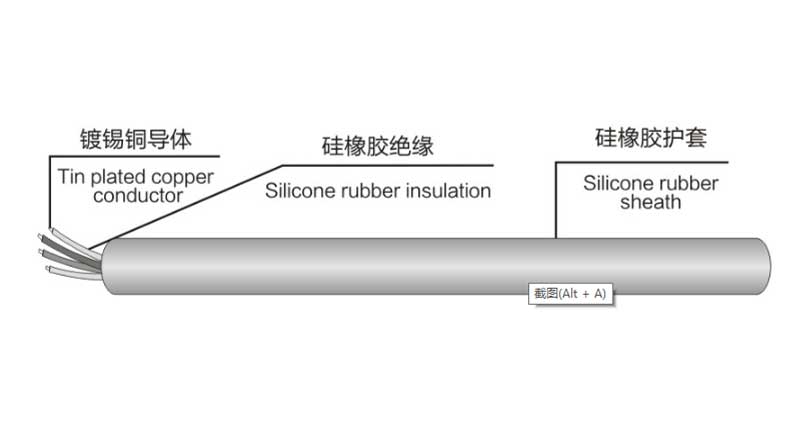

導體：絞合鍍錫銅線
絕緣：硅橡膠
護套：硅橡膠
顏色：紅、黃、藍、白、黑、棕、綠等。
產品性能：可在長期潮濕環境中使用，電性能及防水、防霉性能優越。彎曲性能優良、最小彎曲半徑為電纜外徑16倍，可移動使用。適用于交流額定電壓600V及以下各種移動式電機、鋼鐵、航空、電廠、石化等高溫環境中使用。
交貨要求：按雙方合同協議商定，允許不小于
產品技術參數
芯數×截面 （mm2） | 導體結構 根數/線徑 | 絕緣 | 護套 | |||
厚度 | 外徑 | 厚度 | 外徑 | |||
2×0.2 | 7/0.20 | 0.50 | 1.60 | 1.0 | 5.2 | 94 |
3×0.2 | 7/0.20 | 0.50 | 1.60 | 1.0 | 5.2 | 94 |
4×0.2 | 7/0.20 | 0.50 | 1.60 | 1.0 | 5.6 | 94 |
5×0.2 | 7/0.20 | 0.50 | 1.60 | 1.2 | 6.5 | 94 |
2×0.3 | 16/0.15 | 0.50 | 1.70 | 1.0 | 5.4 | 71.2 |
3×0.3 | 16/0.15 | 0.50 | 1.70 | 1.0 | 5.4 | 71.2 |
4×0.3 | 16/0.15 | 0.50 | 1.70 | 1.0 | 5.9 | 71.2 |
5×0.3 | 16/0.15 | 0.50 | 1.70 | 1.2 | 6.8 | 71.2 |
2×0.5 | 28/0.15 | 0.50 | 2.0 | 1.0 | 6.0 | 40.1 |
3×0.5 | 28/0.15 | 0.50 | 2.0 | 1.2 | 6.8 | 40.1 |
4×0.5 | 28/0.15 | 0.50 | 2.0 | 1.2 | 7.2 | 40.1 |
5×0.5 | 28/0.15 | 0.50 | 2.0 | 1.2 | 7.8 | 40.1 |
6×0.5 | 28/0.15 | 0.50 | 2.0 | 1.3 | 8.6 | 40.1 |
7×0.5 | 28/0.15 | 0.50 | 2.0 | 1.3 | 8.6 | 40.1 |
2×0.75 | 24/0.20 | 0.60 | 2.40 | 1.2 | 7.2 | 26.7 |
3×0.75 | 24/0.20 | 0.60 | 2.40 | 1.2 | 7.6 | 26.7 |
4×0.75 | 24/0.20 | 0.60 | 2.40 | 1.3 | 8.5 | 26.7 |
5×0.75 | 24/0.20 | 0.60 | 2.40 | 1.5 | 9.5 | 26.7 |
6×0.75 | 24/0.20 | 0.60 | 2.40 | 1.6 | 10.4 | 26.7 |
7×0.75 | 24/0.20 | 0.60 | 2.40 | 1.6 | 10.4 | 26.7 |
10×0.75 | 24/0.20 | 0.60 | 2.40 | 1.7 | 12.6 | 26.7 |
12×0.75 | 24/0.20 | 0.60 | 2.40 | 1.8 | 13.6 | 26.7 |
14×0.75 | 24/0.20 | 0.60 | 2.40 | 1.8 | 14.2 | 26.7 |
19×0.75 | 24/0.20 | 0.60 | 2.40 | 1.8 | 15.6 | 26.7 |
2×1 | 32/0.20 | 0.60 | 2.60 | 1.2 | 7.6 | 20.0 |
3×1 | 32/0.20 | 0.60 | 2.60 | 1.2 | 7.8 | 20.0 |
4×1 | 32/0.20 | 0.60 | 2.60 | 1.3 | 8.8 | 20.0 |
5×1 | 32/0.20 | 0.60 | 2.60 | 1.5 | 10.0 | 20.0 |
6×1 | 32/0.20 | 0.60 | 2.60 | 1.6 | 11.0 | 20.0 |
7×1 | 32/0.20 | 0.60 | 2.60 | 1.8 | 11.6 | 20.0 |
10×1 | 32/0.20 | 0.60 | 2.60 | 1.8 | 13.4 | 20.0 |
12×1 | 32/0.20 | 0.60 | 2.60 | 1.8 | 14.5 | 20.0 |
14×1 | 32/0.20 | 0.60 | 2.60 | 1.8 | 15.2 | 20.0 |
19×1 | 32/0.20 | 0.60 | 2.60 | 1.8 | 16.6 | 20.0 |
2×1.5 | 48/0.20 | 0.60 | 2.80 | 1.3 | 8.5 | 13.7 |
3×1.5 | 48/0.20 | 0.60 | 2.80 | 1.3 | 8.5 | 13.7 |
4×1.5 | 48/0.20 | 0.60 | 2.80 | 1.4 | 9.5 | 13.7 |
5×1.5 | 48/0.20 | 0.60 | 2.80 | 1.5 | 10.6 | 13.7 |
6×1.5 | 48/0.20 | 0.60 | 2.80 | 1.8 | 12.0 | 13.7 |
7×1.5 | 48/0.20 | 0.60 | 2.80 | 1.8 | 12.0 | 13.7 |
10×1.5 | 48/0.20 | 0.60 | 2.80 | 1.8 | 14.2 | 13.7 |
12×1.5 | 48/0.20 | 0.60 | 2.80 | 1.8 | 15.2 | 13.7 |
14×1.5 | 48/0.20 | 0.60 | 2.80 | 1.8 | 16.0 | 13.7 |
19×1.5 | 48/0.20 | 0.60 | 2.80 | 2.0 | 18.0 | 13.7 |
20×1.5 | 48/0.20 | 0.60 | 2.80 | 2.0 | 18.5 | 13.7 |
24×1.5 | 48/0.20 | 0.60 | 2.80 | 2.0 | 21.2 | 13.7 |
37×1.5 | 48/0.20 | 0.60 | 2.80 | 2.4 | 24.5 | 13.7 |
2×2.5 | 49/0.25 | 0.70 | 2.80 | 1.5 | 10.0 | 8.21 |
3×2.5 | 49/0.25 | 0.70 | 3.50 | 1.5 | 10.5 | 8.21 |
4×2.5 | 49/0.25 | 0.70 | 3.50 | 1.7 | 12.0 | 8.21 |
5×2.5 | 49/0.25 | 0.70 | 3.50 | 1.8 | 13.2 | 8.21 |
6×2.5 | 49/0.25 | 0.70 | 3.50 | 1.8 | 14.2 | 8.21 |
7×2.5 | 49/0.25 | 0.70 | 3.50 | 1.8 | 14.2 | 8.21 |
10×2.5 | 49/0.25 | 0.70 | 3.50 | 1.8 | 16.8 | 8.21 |
12×2.5 | 49/0.25 | 0.70 | 3.50 | 1.8 | 18.2 | 8.21 |
14×2.5 | 49/0.25 | 0.70 | 3.50 | 2.0 | 19.5 | 8.21 |
19×2.5 | 49/0.25 | 0.70 | 3.50 | 2.2 | 22.0 | 8.21 |
24×2.5 | 49/0.25 | 0.70 | 3.50 | 2.4 | 26.4 | 8.21 |
37×2.5 | 49/0.25 | 0.70 | 3.50 | 2.5 | 29.5 | 8.21 |
